160 Watt Walkable Marine Solar Panel - HJT Cells
$2,000.00
Skip to product information
160 Watt Walkable Marine Solar Panel - HJT Cells
$2,000.00
FREE SHIPPING
Ships within 24 hours - Nationwide delivery
NO TAX
Save on sales tax - Applied at checkout
This was our first van-specific walkable panel, now discontinued. See our new and improved walkable panel options here.

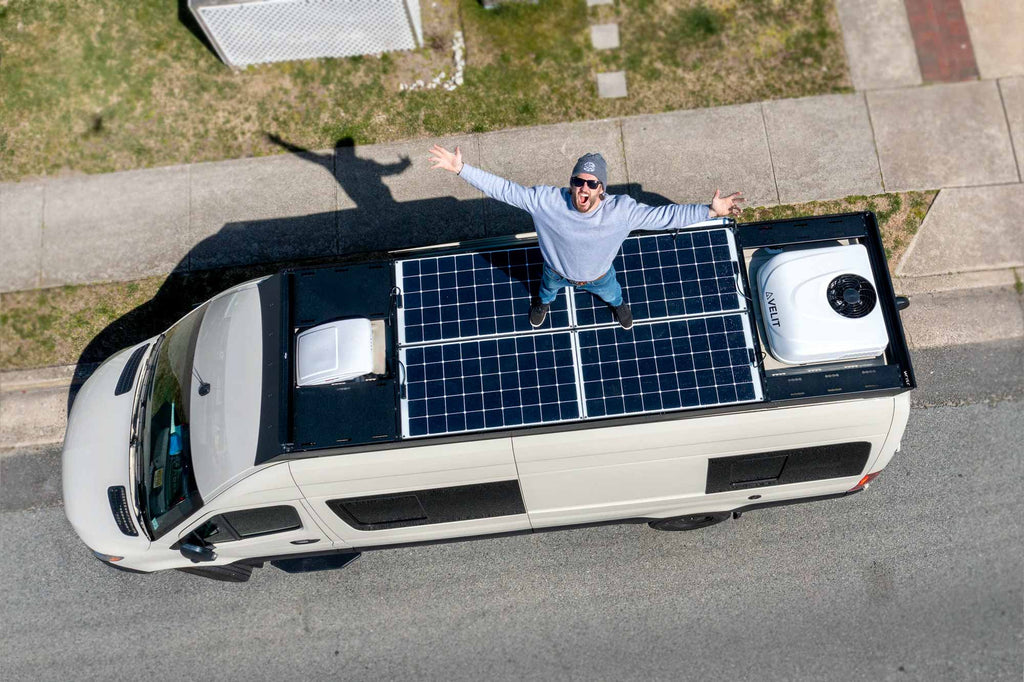

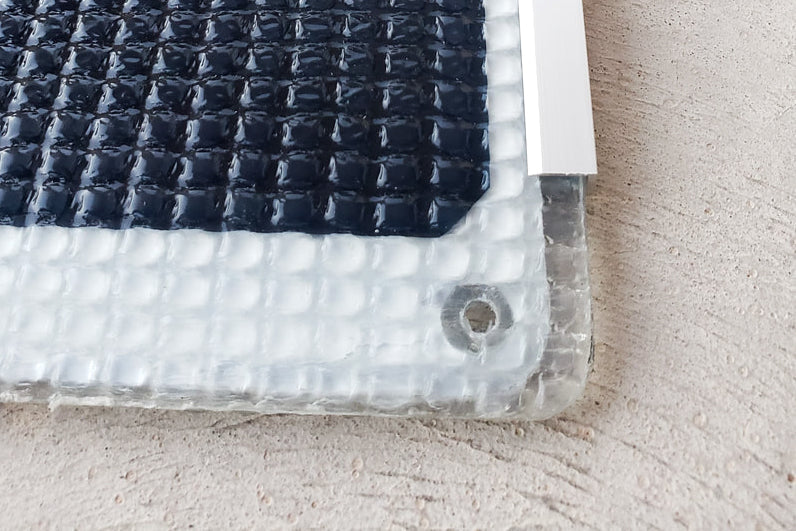

Discover the outstanding performance of our semi-rigid 160-watt walkable marine solar panel, designed specifically for Sprinter, Transit and Promaster vans. These are NOT your typical flexible solar panels! With premium HJT solar cells, these panels offer good efficiency, featuring a durable backing and ETFE laminate non-skid surface that is designed to be walked on. For the best solar cells and efficiency, look at our 160W SunPower panel. Ideal for van roofs, they redefine versatility in solar energy solutions.

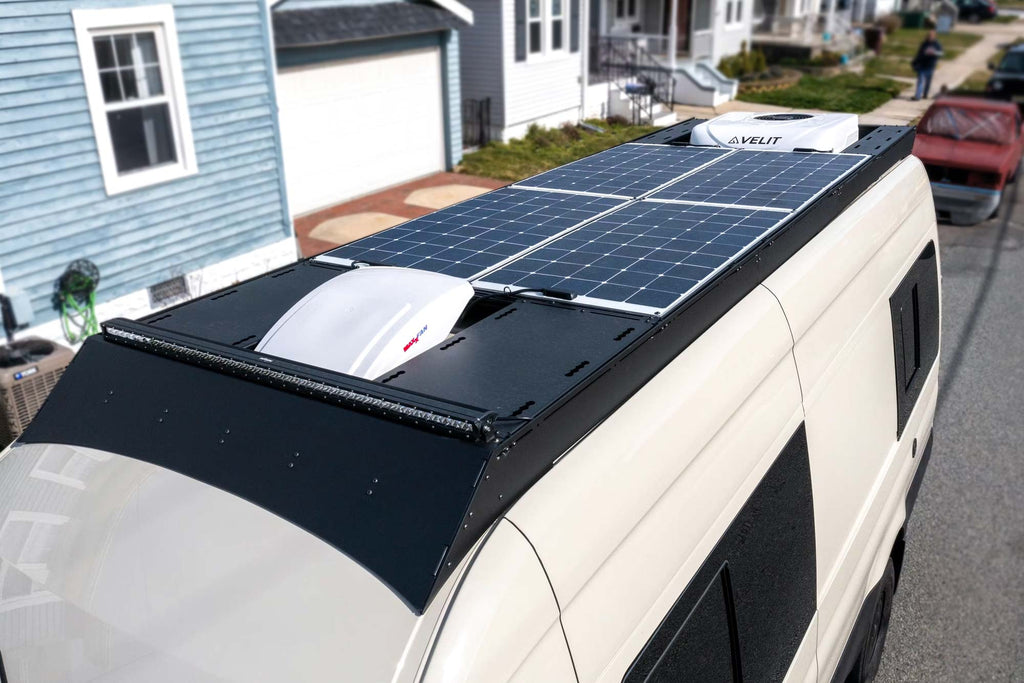

The panel's advanced HJT technology delivers up to 6-14% more energy than standard monocrystalline cells. There is no glass and no aluminum frame so these panels are considerably lighter than rigid panels but heavier and stiffer than typical flexible panels. They can be bent slightly to match up with the underlying surface, about 5%. The white backing is better at dissipating heat. For maximum space utilization and functionality on your van roof, combine these walkable solar panels with Orion's modular deck panels for the ultimate solution.
Key Features:
- Exceptional Durability: Ensuring durability and reliability even in harsh marine environments.
- Premium A-Grade HJT Solar Cells: Designed for maximum efficiency and performance, even in partial sunlight conditions.
- Ideal for Various Applications: Perfect for rigid surfaces such as van roofs, RV roofs, or sailboats.
- Lightweight: Weighing only 11.8 pounds, these panels can be bent slightly to match the underlying surface, offering flexibility in installation.
- Manufacturer's Warranty: Enjoy a 1-year warranty at 80% efficiency, plus 4 years prorated.
Specifications:
- Panel Type: HJT solar cells
- Rated Power: 160 Watts
- Manufacturer's Warranty: 1 Year @ 80% + 4 Years Prorated
- Dimensions: ~26.4" X 47.7"
- Weight: 11.8 pounds
- Output Connections: 6-foot Duplex Cable 3/8" OD
- Peak Power Voltage (Vmpp): 22.3 Volts
- Peak Power Amps (Impp): 7 Amps
- Open Circuit Voltage (Voc): 25.7 Volts
- Short Circuit Current (Isc): 7.4 Amps
- Cell Conversion Efficiency: 24.2%
FAQs for 160W Walkable Monocrystalline Marine Solar Panel
1. What are the main features of the 160W walkable marine solar panel?
The 160W walkable marine solar panel features exceptional durability, premium A-Grade HJT solar cells, and a semi-rigid design. It has a durable backing, ETFE laminate non-skid surface, and is lightweight, making it ideal for van roofs, RV roofs, or sailboats.
2. Are the solar panels walkable?
Yes, the panels have an ETFE laminate non-skid surface that makes them walkable without damaging the solar cells.
3. What applications are suitable for these panels?
These panels are perfect for rigid surfaces such as van roofs, RV roofs, or sailboats.
4. What are the dimensions and weight of the 160W solar panel?
The 160W solar panel measures 26.4" x 47.7" and weighs 11.8 pounds.
5. What type of solar cells are used in the 160W panel?
The panel uses Class A Monocrystalline HJT cells, known for their high efficiency and performance.
6. What is the efficiency of the solar cells?
The cell conversion efficiency is 24.2%.
7. What is the warranty on the 160W walkable marine solar panel?
The manufacturer provides a 1-year warranty at 80% efficiency, plus a 4-year prorated warranty.
8. Can the panels be bent to match curved surfaces?
Kind of, the panels are semi-rigid and can be bent approximately 5% to match the underlying surface, offering flexibility in installation.

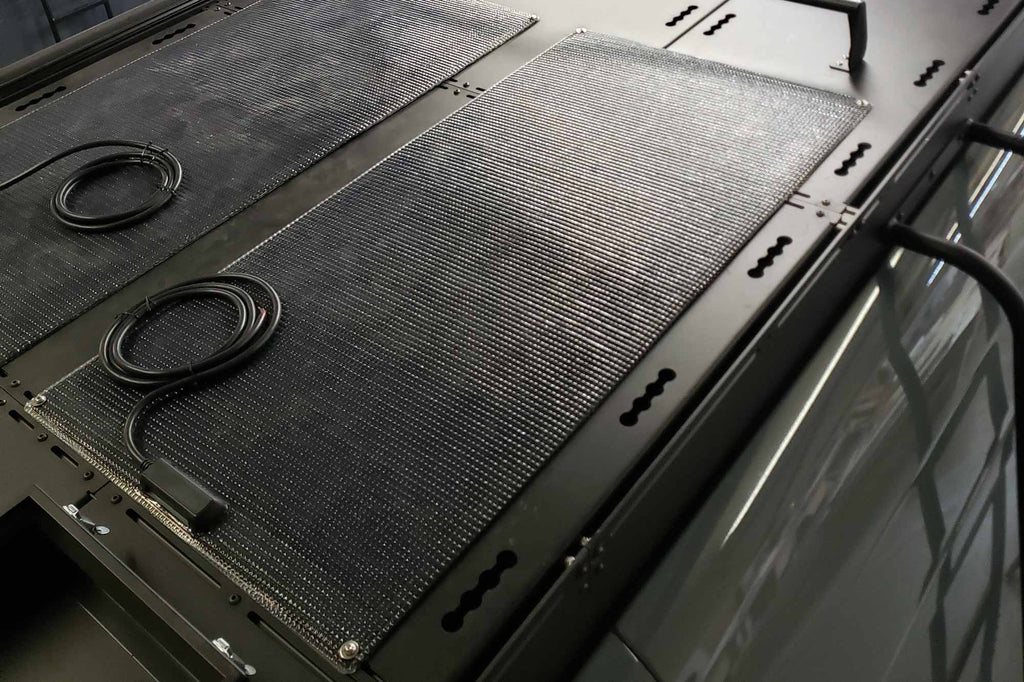

9. What backing color options are available?
The panels are only available with a white backing as the performance is better for all van applications.
10. How should the panels be installed on a Sprinter or Transit van?
See the guide linked above.
11. Is hardware included with the solar panels?
No, hardware is not included. Recommendations for mounting hardware are provided in the installation manual.
12. What are the electrical specifications of the 160W solar panel?
Rated Power: 160 Watts
Peak Power Voltage (Vmpp): 22.3 Volts
Peak Power Amps (Impp): 7 Amps
Open Circuit Voltage (Voc): 25.7 Volts
Short Circuit Current (Isc): 7.4 Amps
13. Do you offer support for installation?
Yes, you can contact us for any questions or assistance with your installation.
14. Where can I explore more sizes and options for walkable marine solar panels?
Please visit our website to explore the full range of walkable solar panels.
