Rich MEGA 100 Watt Slim Solar Panel | 12v
Black
$2,000.00
Skip to product information
Rich MEGA 100 Watt Slim Solar Panel | 12v
$2,000.00
FREE SHIPPING
Ships within 24 hours - Nationwide delivery
NO TAX
Save on sales tax - Applied at checkout
Overview

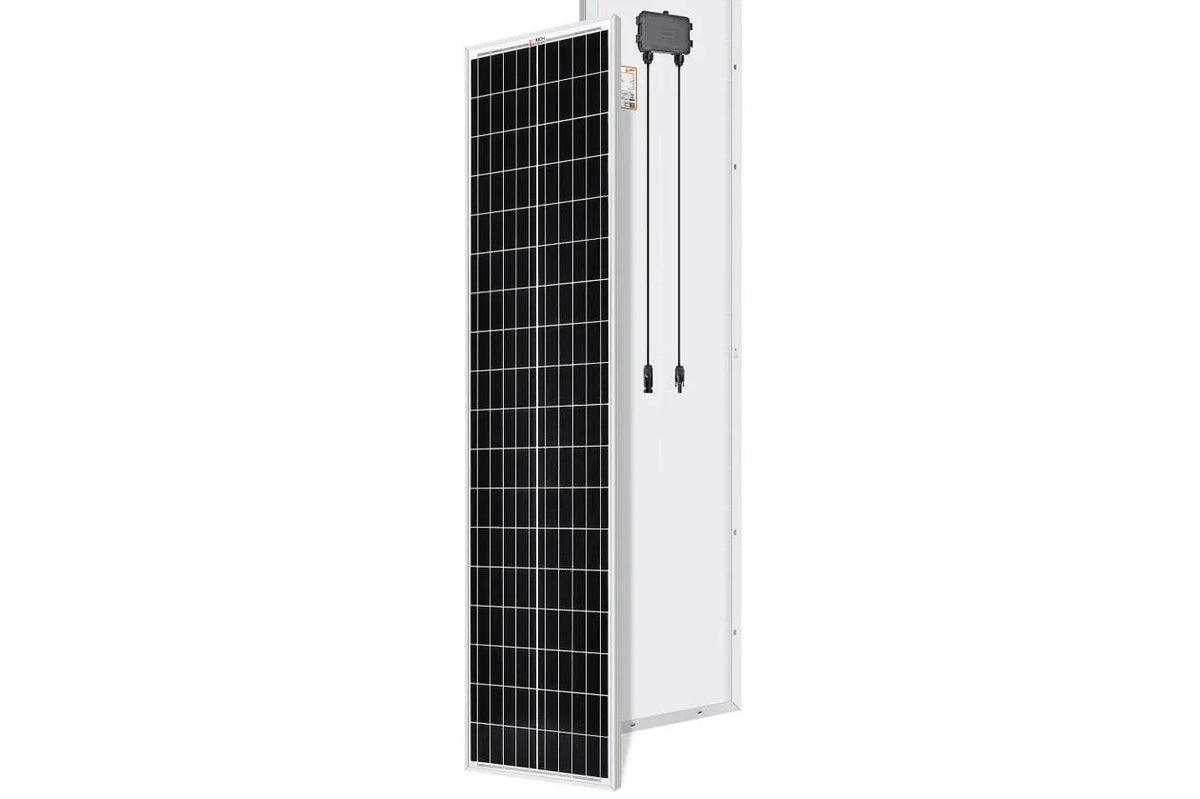

The Rich Solar MEGA 100 Slim 100 Watt 12V Solar Panel is a narrow-format rigid panel designed for tight roof layouts and space-constrained installs. Its slim footprint can be useful when you are placing panels alongside roof accessories like vent fans, while still providing a full 100W rated output. We love using this panel on our Sprinter Roof Rack because it can fit next to a MaxxAir 7500 Fan. Built with AR-coated tempered glass and an anodized aluminum frame, this panel is designed for outdoor durability and off-grid use cases like vans, RVs, cabins, and boats.
Installation flexibility
Pre-drilled holes support multiple mounting approaches such as ground mounts, Z-brackets, poles, and tilt systems. Optimize solar performance when paired with our Stealth+ Roof Rack and correct solar brackets when used on a van.
Key Features
- 100W slim rigid panel: Narrow format panel designed for space-limited installs.
- Positive power tolerance: 0 to +5 W rated positive power tolerance.
- Cell technology: N-Type TOPCon multi-busbar cells.
- Outdoor construction: High transmission AR-coated tempered glass and anodized aluminum alloy frame.

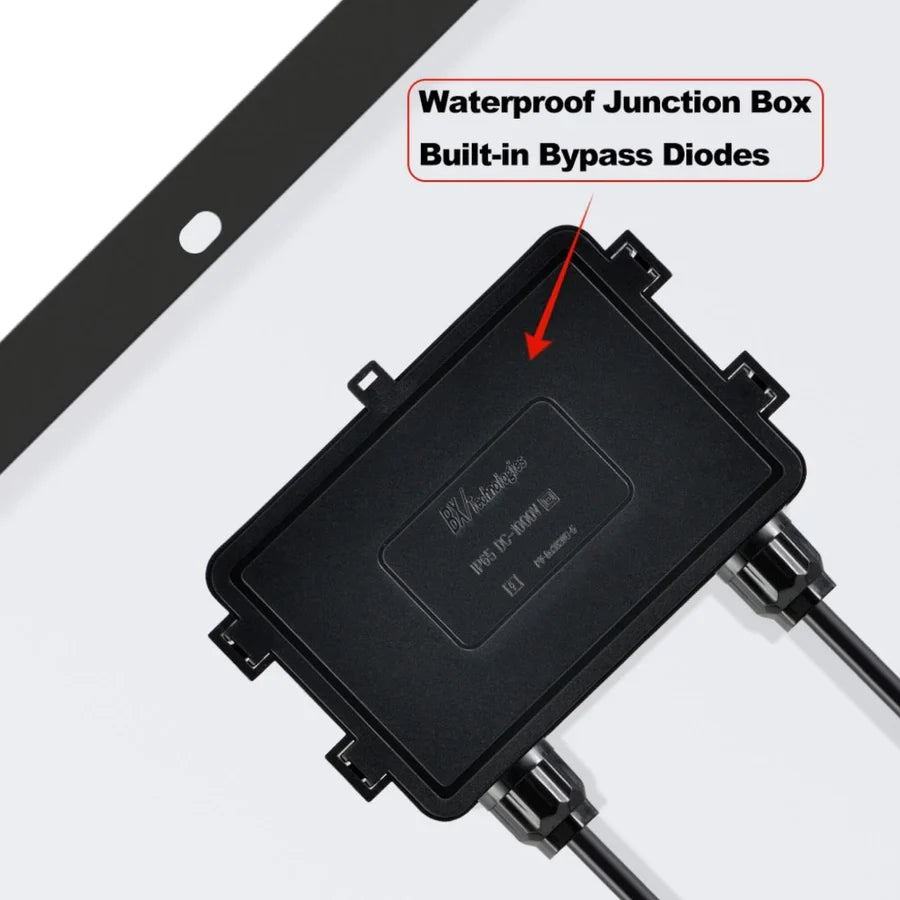

- Weather-rated junction box: IP67-rated junction box.
- Mechanical load rating: Certified mechanical strength up to 5400 Pa positive load and 2400 Pa negative load.

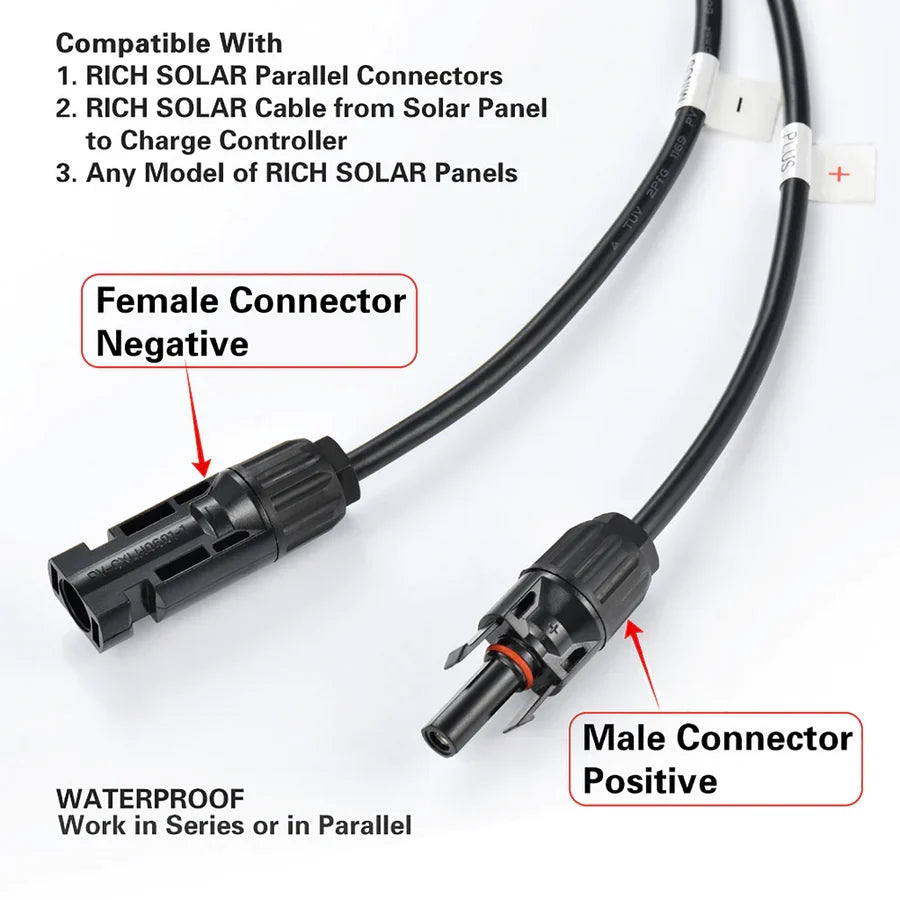

- Wiring support: MC4 Solar connectors with #12 gauge (4.0 mm²) cables.
- System compatibility: Designed for compatibility with mainstream optimizers, inverters, and mounting systems.
Technical Specs
Electrical (STC)
| Spec | Details |
|---|---|
| Maximum Power (Pmax) | 100 W |
| Power Tolerance | 0 to +5 W |
| Maximum Power Voltage (Vmp) | 19.6 V |
| Maximum Power Current (Imp) | 5.10 A |
| Open Circuit Voltage (Voc) | 23.6 V |
| Short Circuit Current (Isc) | 5.38 A |
| Maximum System Voltage | 1000 VDC |
| Maximum Series Fuse Rating | 15 A |
| Module Efficiency | 19.7% |
Mechanical
| Spec | Details |
|---|---|
| Dimensions (L x W x D) | 50.0 x 15.8 x 1.2 in (1270 x 400 x 30 mm) |
| Weight | 12.4 lb (5.6 kg) |
| Frame | Anodized aluminum alloy |
| Front Glass | 3.2 mm (0.13 in), high transmission, AR-coated tempered glass |
| Backsheet | White / Black |
| Junction Box | IP67 rated |
| Connector | MC4 Solar connectors |
| Cables | 4.0 mm² (#12 gauge), 35.4 in length |
| Cell Orientation | 34 cells (2 x 17) |
| Solar Cells Type | N-Type TOPCon |
Temperature Ratings
| Spec | Details |
|---|---|
| Nominal Module Operating Temperature (NMOT) | 45°C ± 2°C |
| Temperature Coefficient of Pmax | -0.35%/°C |
| Temperature Coefficient of Voc | -0.28%/°C |
| Temperature Coefficient of Isc | 0.045%/°C |
| Temperature Range | -40 to +185°F |
Resources and Downloads
Frequently Asked Questions (click to expand)
1. What makes this panel different from a standard 100W panel?
It uses a slim form factor (50.0 x 15.8 in) that can be easier to place in narrow roof spaces compared with wider 100W rigid panels.
2. Is this panel suitable for 12V battery systems?
It is listed as a 12V solar panel and has STC ratings like Vmp 19.6V and Voc 23.6V. For battery charging, use a compatible charge controller and properly sized wiring and overcurrent protection.
3. What are the electrical ratings at STC?
Rated at 100W with Vmp 19.6V, Imp 5.10A, Voc 23.6V, and Isc 5.38A at STC.
4. Can I wire it in series or parallel?
The datasheet notes plug-and-play solar connectors that support both series and parallel configurations. Confirm string sizing and controller limits for your specific system.
5. What connector and wire gauge does it use?
It lists solar connectors and #12 gauge (4.0 mm²) cables with 35.4 in (900 mm) length.
6. How weather resistant is the panel?
The junction box is listed as IP67 rated, and the panel is described as built for harsh environments.
7. What mechanical loads is it rated for?
The datasheet states mechanical strength certified up to 5400 Pa positive load and 2400 Pa negative load.
8. What temperature range is listed for operation?
The datasheet lists a temperature range of -40 to +185°F and provides temperature coefficients for performance calculations.
