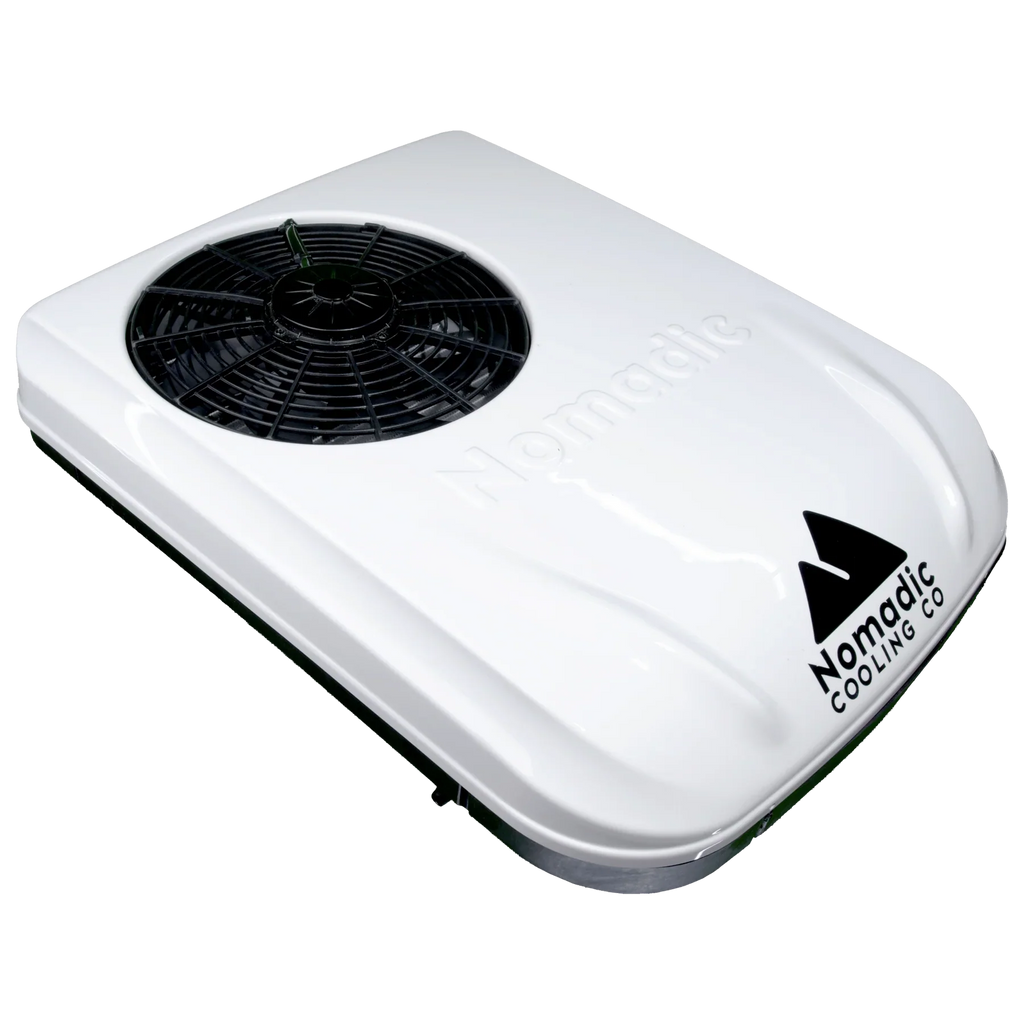

Nomadic X2 24V DC Rooftop Air Conditioner

Low profile, lightweight, and quiet DC cooling that drops into a standard 14" × 14" opening.

This page is for the X2 24V model only. The former 12V and 48v “Standard” and "Plus" units have been replaced by X2 Helix models, which can be found here.

The X2 24V runs directly from a 24V house battery system, no generator or shore power required. It uses brushless airflow with a flush, powder-coated interior faceplate for a clean cabin finish. A bright LCD panel gives you easy, glove-friendly control of multiple modes (ECO, MAX, Auto, Fan-Only) for comfort and battery life.

Compact Power, Easy Fit

Designed around the industry-standard 14" × 14" roof cutout, the X2 installs with crossbars and a foam gasket* for a secure, low-profile mount. A modern LCD control panel and handheld remote keep operation simple and consistent on the road. (See Install Manual for the full parts list and steps.) *Nomadic now says the "Premium Dual-Layer Foam Gasket must be used to guarantee system integrity". If you are looking for a more powerful 24v AC, look at the Nomadic X3 24v.

Key Features

• 24V DC rooftop AC: off-grid ready; runs from your 24V battery bank
• Aerodynamic, low-profile shroud: small footprint with efficient airflow
• 14" × 14" standard fit: familiar opening, straightforward install
• Quiet, brushless airflow: smoother, more efficient fan operation
• LCD control + remote: ECO, MAX, Auto, and Fan-Only modes

Packages

• AC Only (only select if you are confident you do not need the dual-layer gasket): rooftop unit with interior faceplate, LCD control panel, harness, remote, crossbars, and mounting hardware.
• AC + Dual-Layer Foam Gasket: everything in AC Only, plus the manufacturer-specified dual-layer foam gasket for a tighter roof seal, better drainage, and leak prevention. A dual-layer gasket is recommended on all X2 units.

• AC + DIY Install Kit: everything in AC Only, plus a streamlined bundle for a clean self-install:
  • 15ft 2AWG power harness (fuse/fuse holder and butt connector not included)

  • Heat shrink, adhesive, threadlocker, thermo tape

  • Zip Ties with Sticky (Mounting) Plates
  • Trim Ring (Optional for install)

• AC + DIY Install Kit + Dual-Layer Foam Gasket: everything above.

What’s Included (AC Only)

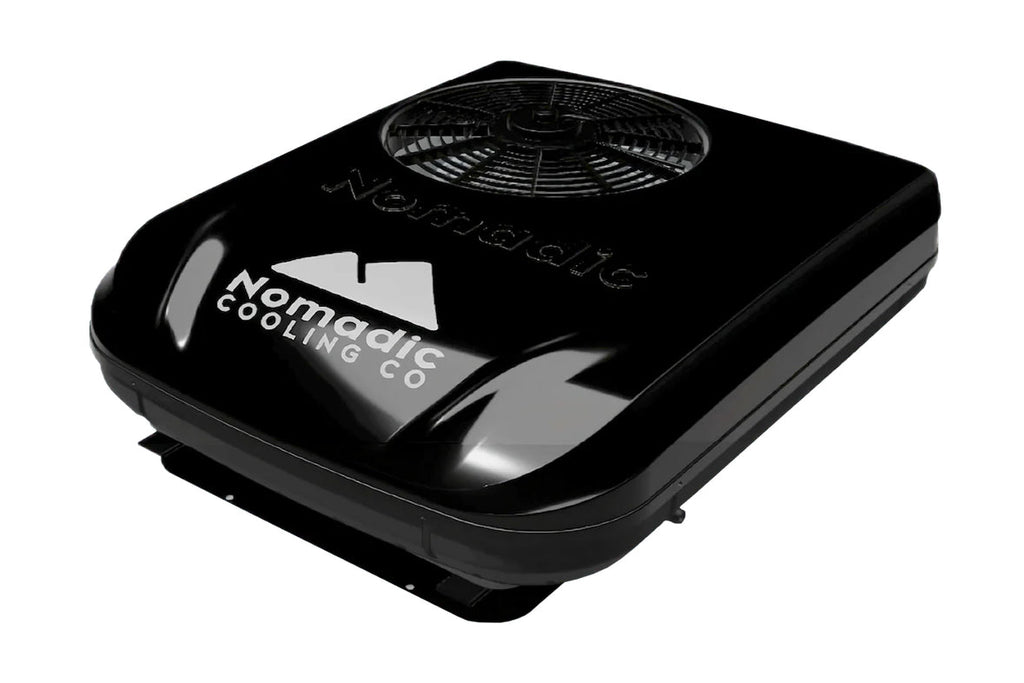

• X2 24V rooftop unit — Black or White shroud
• Single-layer foam gasket for 14" × 14" roof opening
• Crossbars with mounting hardware

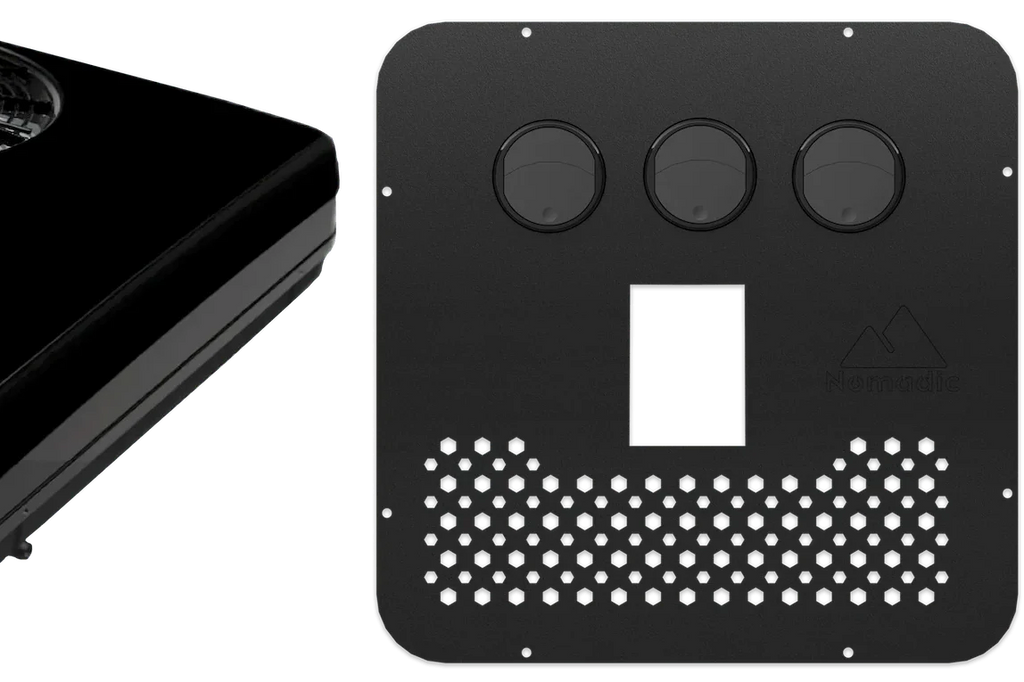

• Flush-mount metal interior faceplate (with black screws)
• Mounting bolts, nuts, flat and lock washers
• Leveling strip; foam air separator with screw
• LCD control panel and wire harness

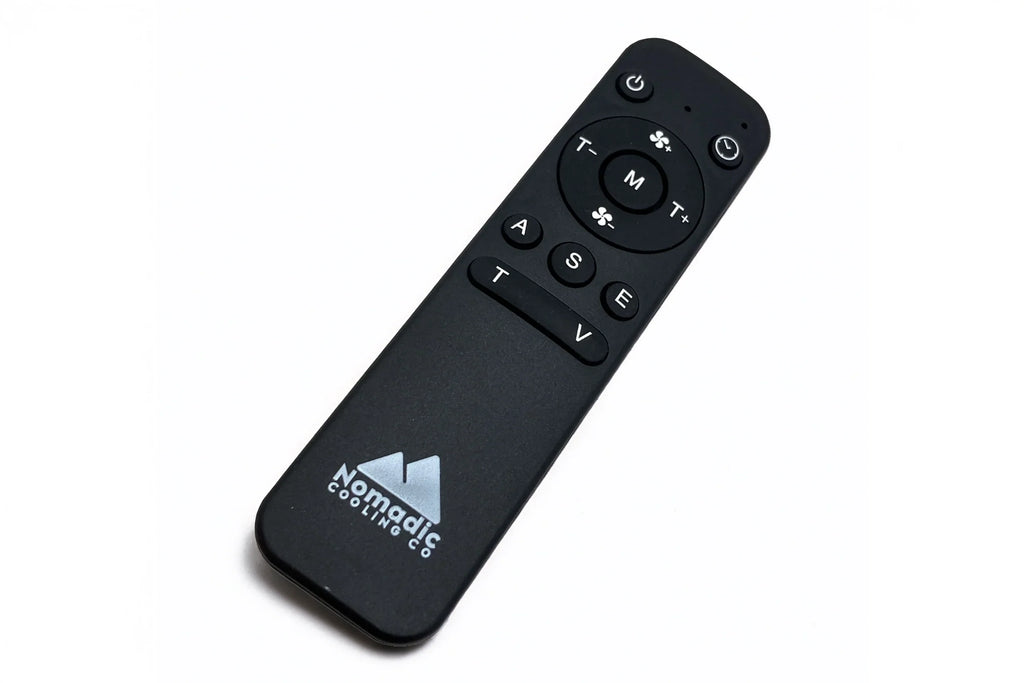

• Remote control
• Full-size 14" × 14" cutout template (1:1 scale)
• Installation Manual
• Troubleshooting Guide


Specs

FAQ (Frequently Asked Questions) — click to expand

Need help choosing the correct air conditioner? Contact us and we’ll match the best unit to your build and power system.
