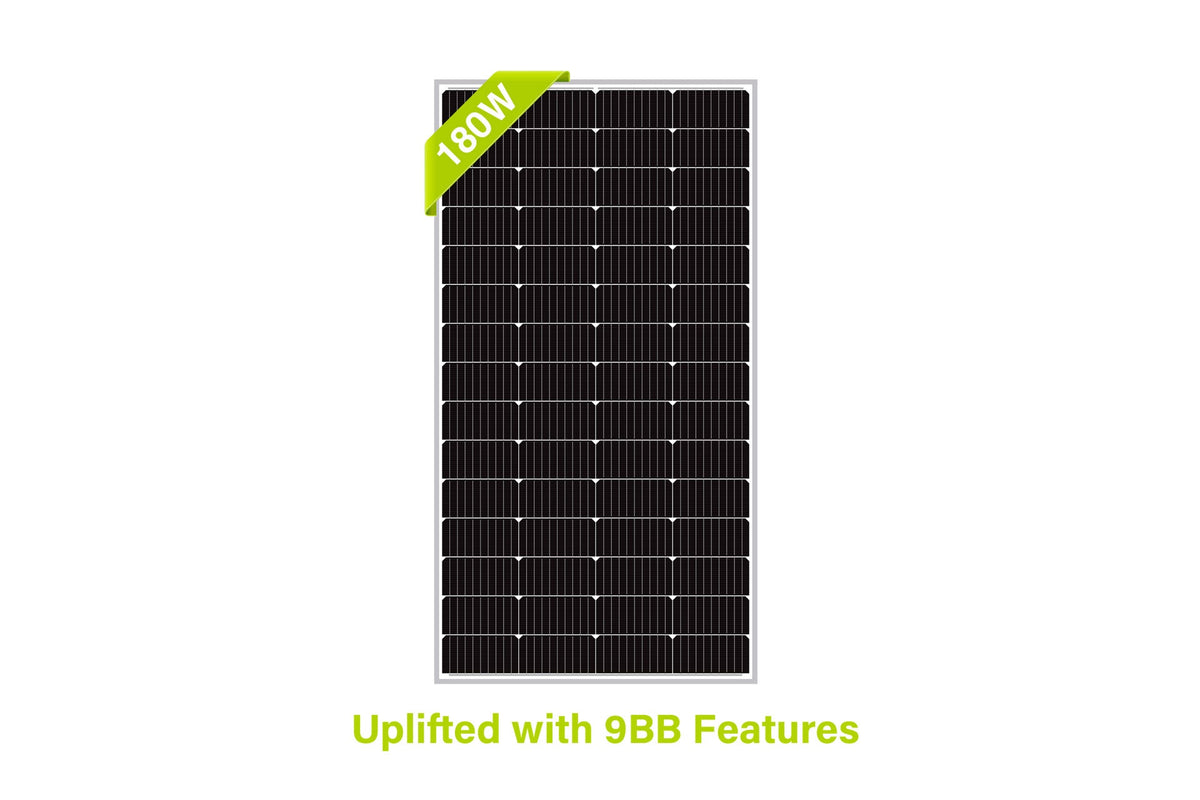

NewPowa 180W Monocrystalline 12V Solar Panel

Maximize Efficiency and Space with the NewPowa 180W Solar Panel

This is the top solar panel on the market for a flush mount inside our Sprinter Stealth+ Roof Rack, replacing the discontinued Renogy 175W panel, to maximize space and wattage output. For our Promaster Rack and Ford Transit Rack, we recommend the Rich 250W solar panel to optimize output for the available width.

The Newpowa 180W Monocrystalline 12V Solar Panel is a popular choice for van, RV, marine, camping, and various off-grid applications. For the best fit and aerodynamics on our Transit or Sprinter rack, use our Flush Solar Panel Brackets.

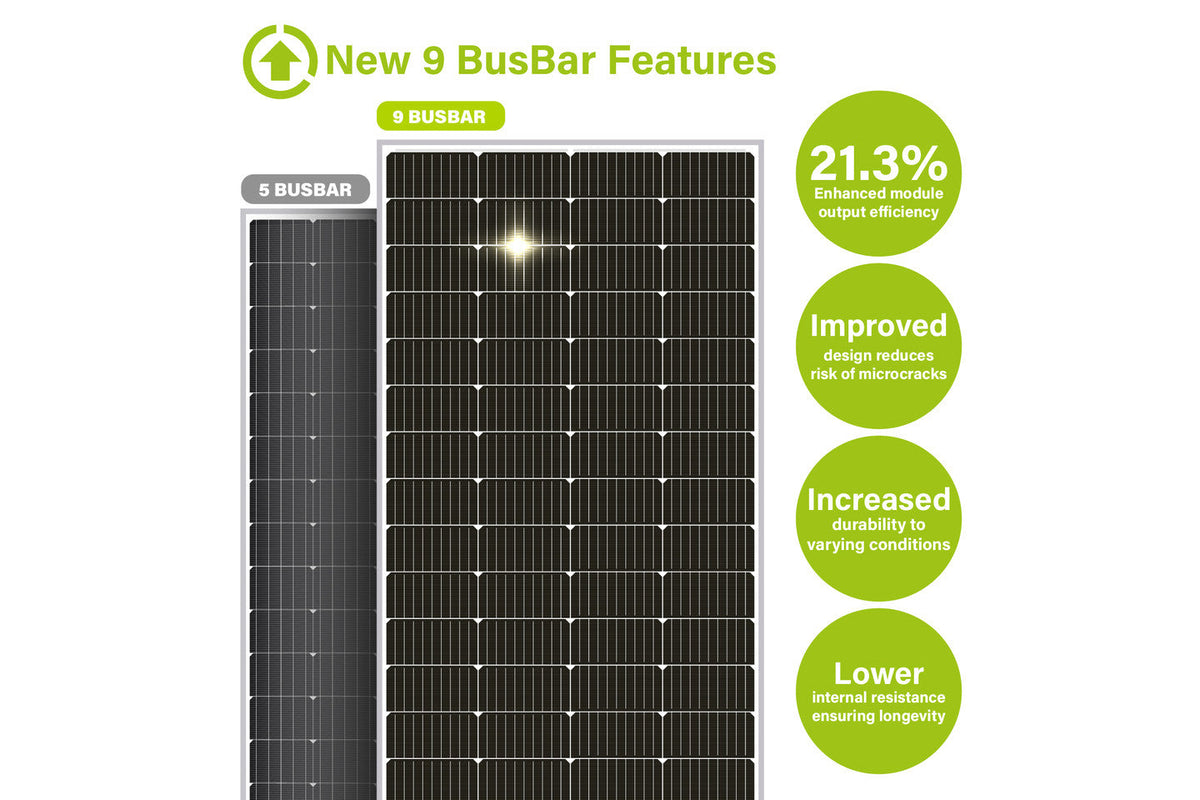

9 BUSBARS

The 9 busbar PV module outperforms older 5 and 6 busbar technology under ideal conditions. The reduced void space between the 9BB solar cells enhances overall efficiency by lowering current lengths and minimizing power loss.

KEY FEATURES

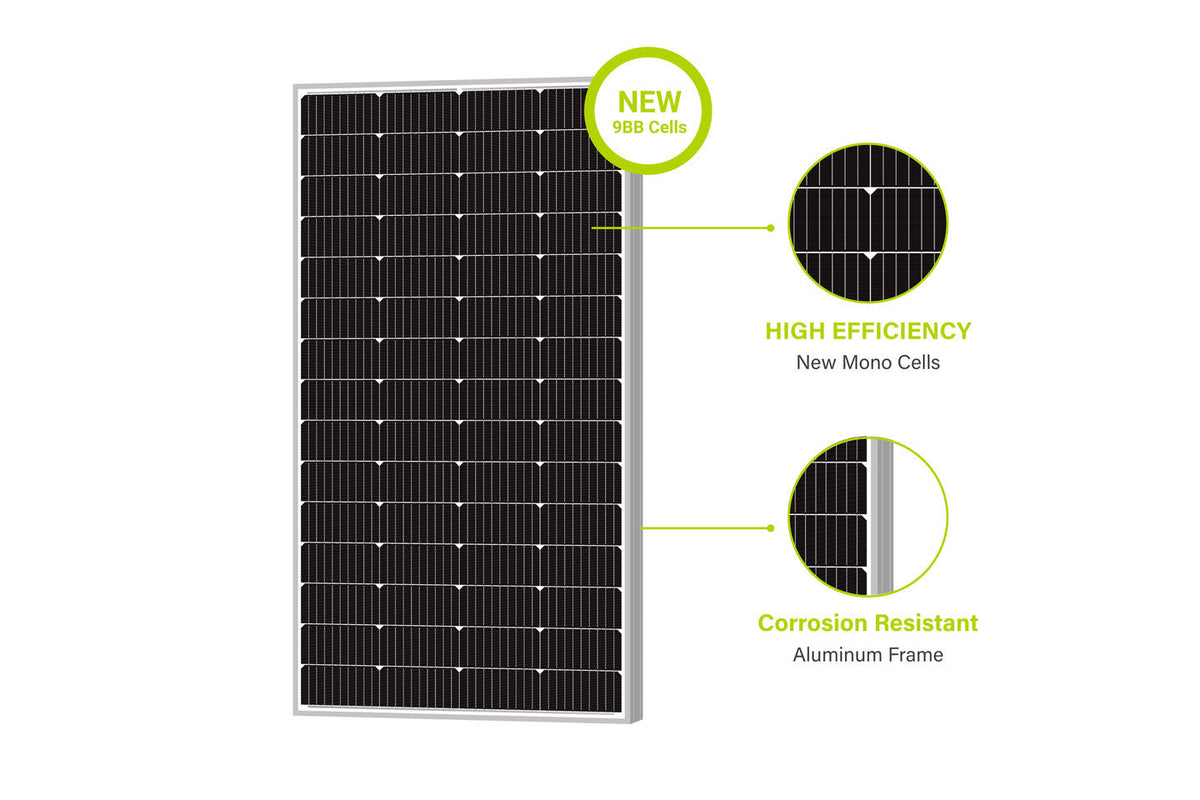

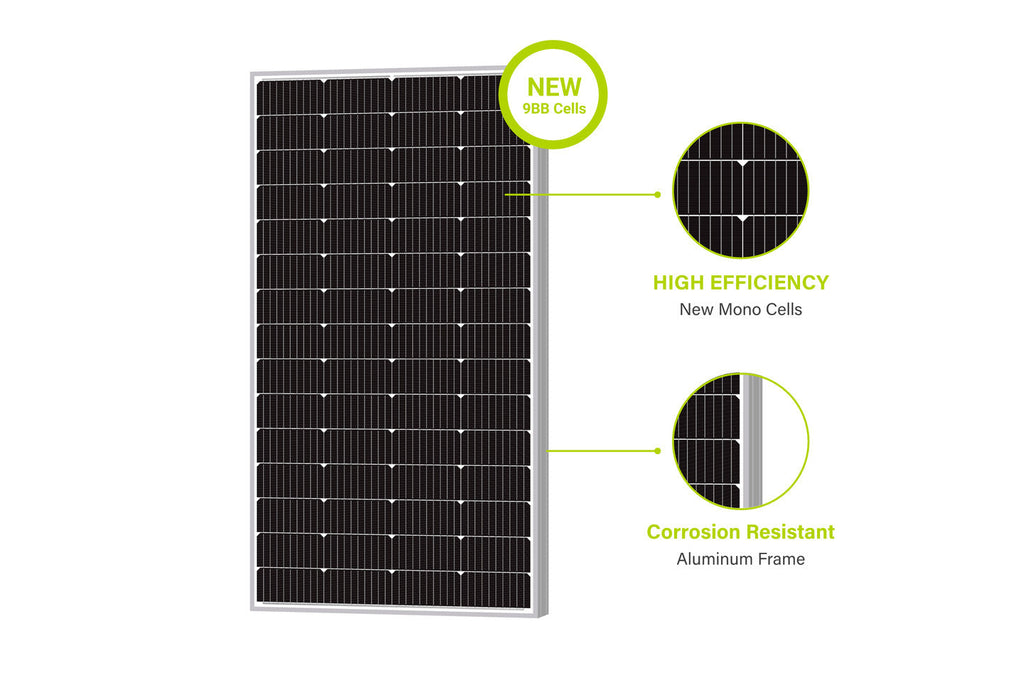

• 180W/12V Monocrystalline high-efficiency solar panel
• High-performance cells encapsulated in EVA (ethylene-vinyl-acetate)
• Nominal 12V DC for standard output
• Rugged design to withstand high winds (2400Pa), hail, and snow load (5400Pa)
• High-transparent, low iron tempered glass
• Durable TPT backsheet that dissipates heat to optimize performance and longevity
• Built-in bypass diodes within the junction box to minimize power drops caused by shading

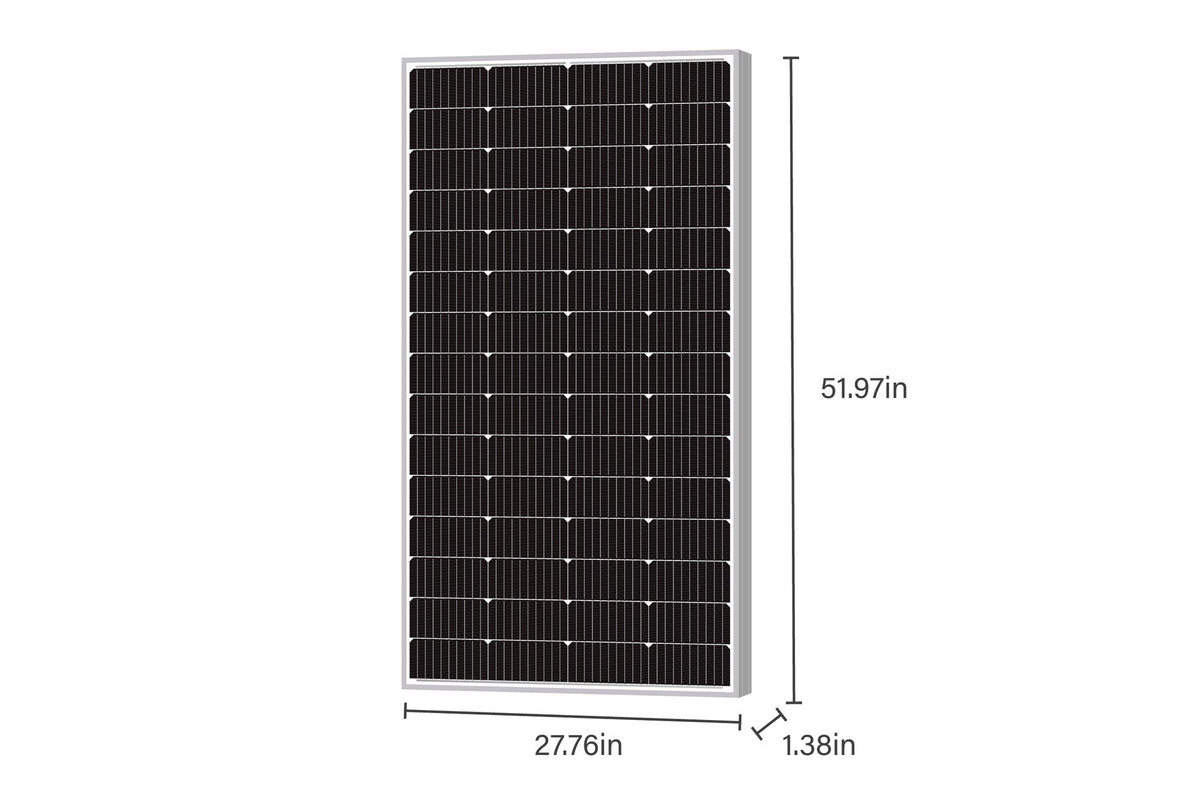

• Dimensions: 51.97 x 27.76 x 1.38 in (1320 x 705 x 35 mm)

INSTALLATION READY

Compatible with both Promaster Stealth+ Flush Solar Panel Brackets and Flush Solar Panel Brackets for the Transit and Sprinter Stealth+ Roof Racks.

• Heavy-duty anodized frame with pre-drilled holes for easy mounting

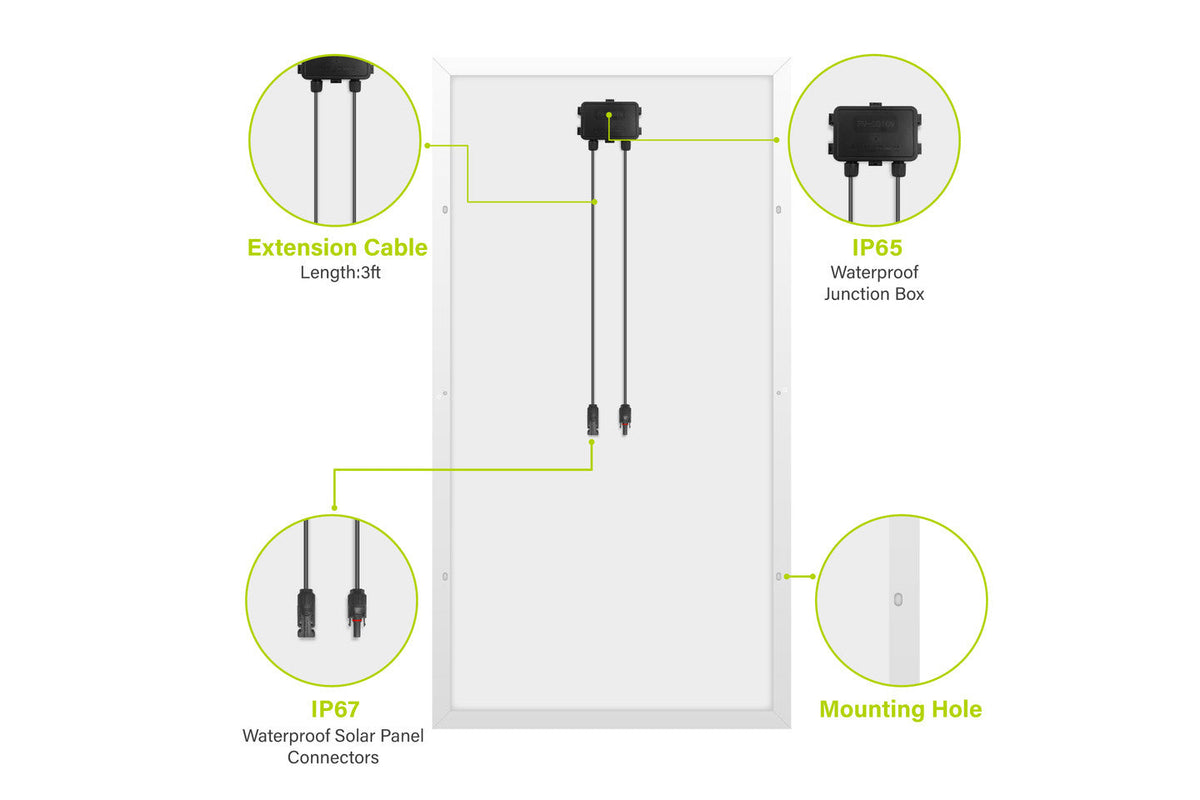

• Pre-attached 3ft wire with connectors (M/F)

WARRANTY

• 2-Year Limited Material and Parts Workmanship Warranty
• 10-Year 90% Output Warranty
• 25-Year 80% Output Warranty

TECH SPECS

• Product Code: NPA180S-12I
• Maximum power (Pmax): 180W
• Voltage at Pmax (Vmp): 17.37V
• Current at Pmax (Imp): 10.40A
• Open-circuit voltage (Voc): 20.04V
• Short-circuit current (Isc): 10.97A
• Temperature coefficient of Voc: -(80±10)mV/°C
• Temperature coefficient of Isc: (0.065±0.015)%/ °C
• Temperature coefficient of power: -(0.5±0.05)%/ °C
• Operating temperature: -40°C to 85°C
• Maximum system voltage: 1000V DC
• Power tolerance: ±3%
• Maximum Series Fuse Rating: 15A
