EcoFlow 5kWh Power Kits (Gen 1)

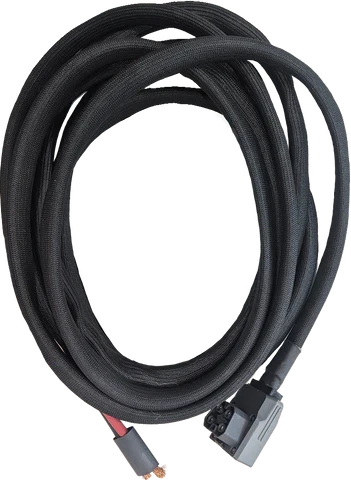

NOW AVAILABLE WITH 48V A/C CABLE: Get the great cooling output & low power draw of a 48-volt air conditioner with your Power Kit, while still having the choice of 12-volt or 24-volt DC output for your DC circuits!

Important Note: The majority of 12V Air Conditioners are compatible only with the eco mode when used alongside any Ecoflow Power Kit. For optimal performance, we strongly advise considering a 48v Nomadic X2 or 48v X3 Helix for use with this kit.

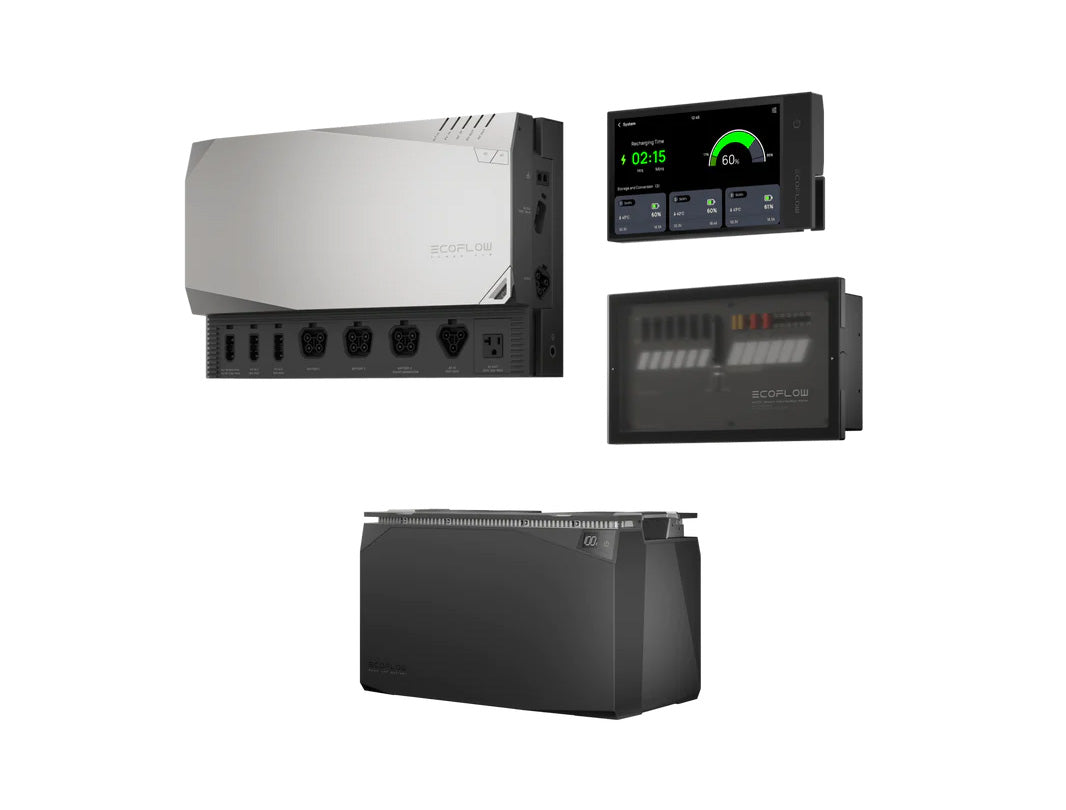

EcoFlow has designed a compact, scalable power system that consists of 4 components:

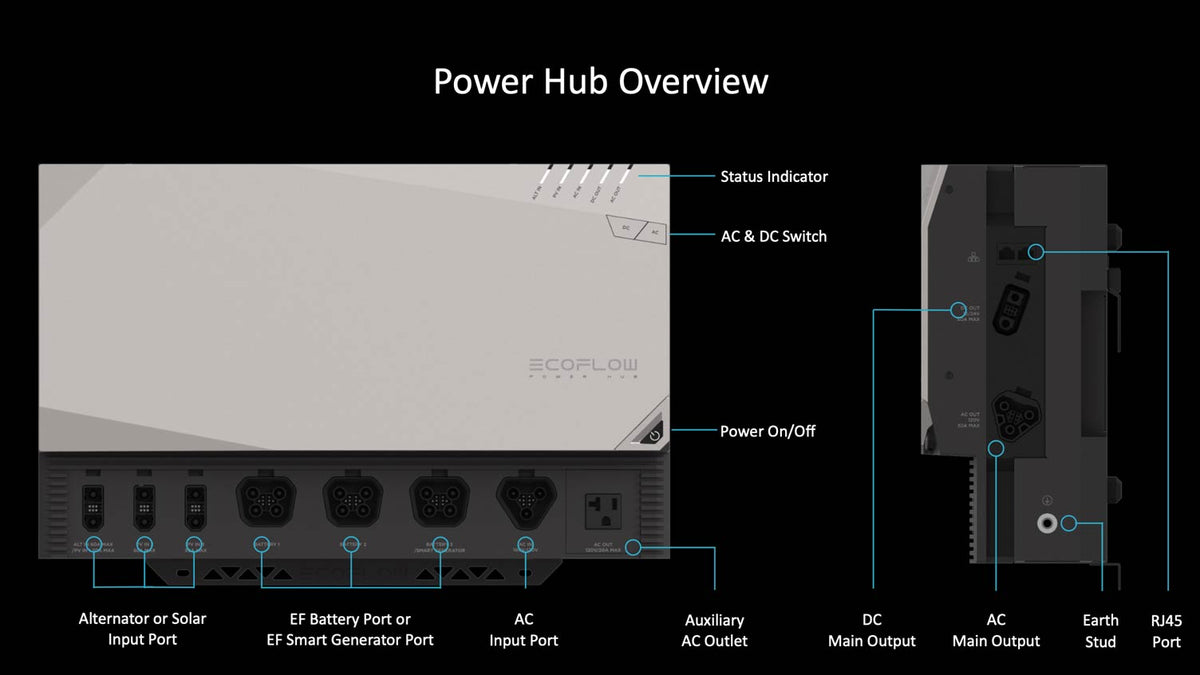

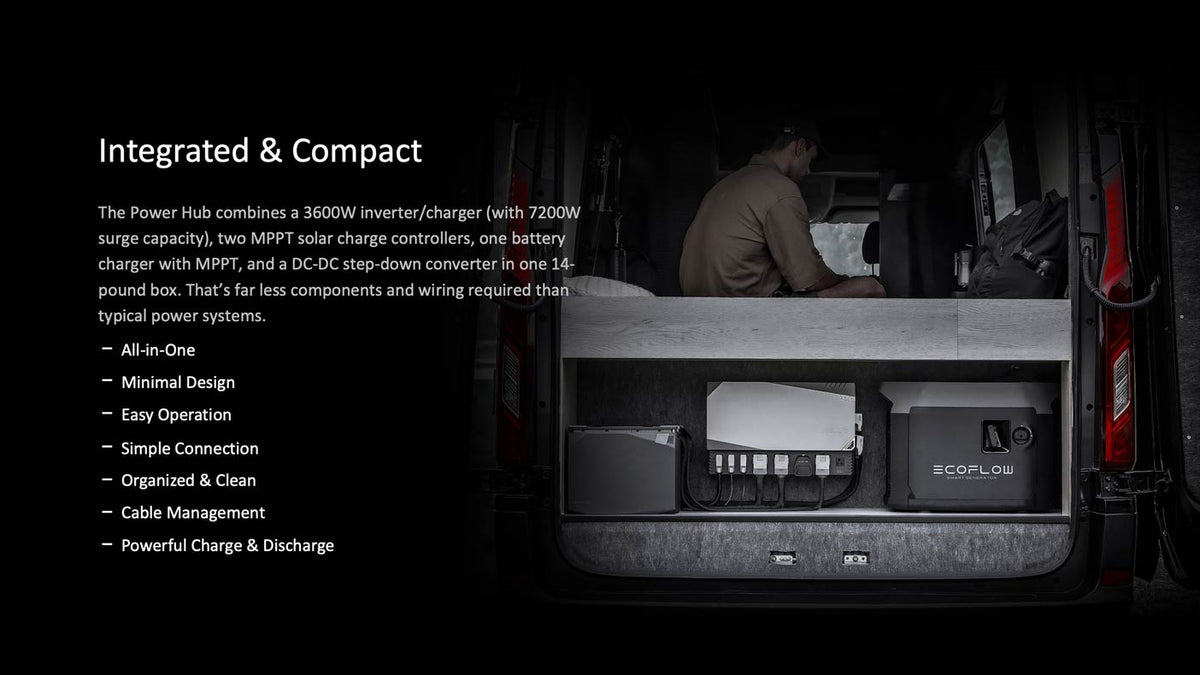

EcoFlow Power Hub - including a 3600W pure sine inverter-charger with max AC output of a whopping 7200W, dual MPPT solar charge controllers, a DC/DC converter, DC/DC battery charger, and plug-in input/output ports for solar, alternator, battery and generator charging.

EcoFlow Power Kit Console - a 7" full-color LCD touchscreen for control and monitoring of all electrical system inputs and outputs. You can turn DC and AC inputs on and off, and monitor the remaining battery capacity.

EcoFlow AC/DC Distribution Panel - The 3-component panel is designed for 6 AC circuits and 12 DC circuits. It has a transparent exterior faceplate, a removable interior face panel, and a deep connection box with knockouts and WAGO-style circuit connectors.

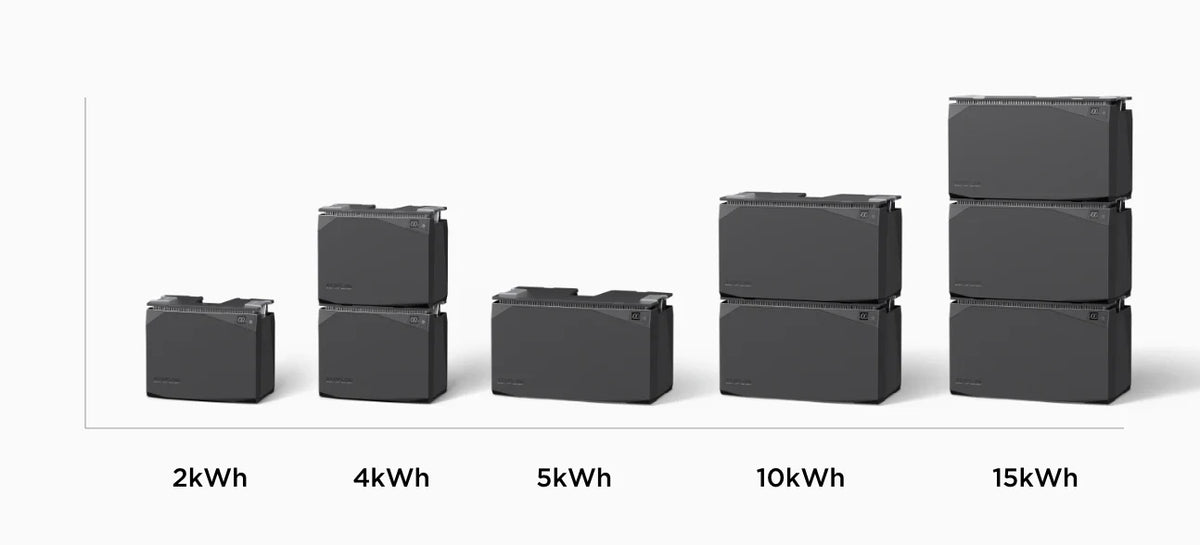

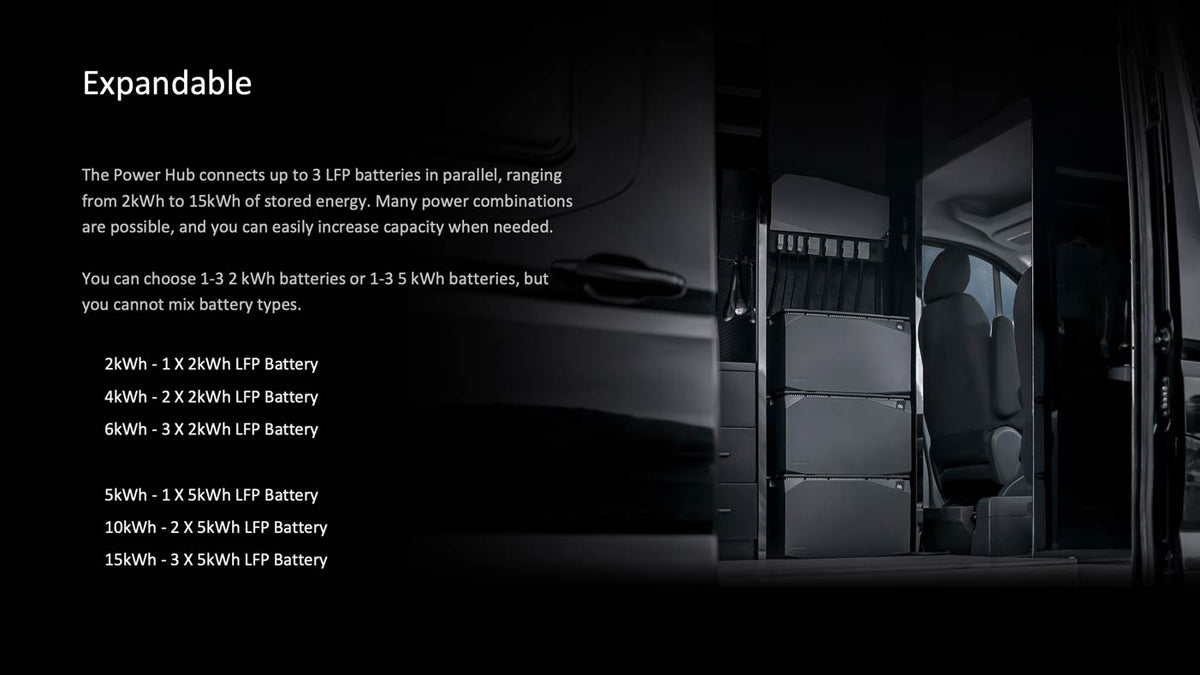

EcoFlow Battery - The 48-volt lithium EcoFlow batteries are available in 2 kWh or 5 kWh sizes. These are long-life lithium iron phosphate (LiFePO4) batteries, which have an operating temperature from -4 F to 122 F because of their built-in auto heating. A 5 kWh EcoFlow Power Kit has one 5 kWh battery. Note that you can use either one, two, or three 2 kWh or 5 kWh batteries in your power system, but you cannot mix and match the two sizes.

An EcoFlow Power Kit is a plug-and-play off-grid power solution. It comes with all the cables you'll need to connect these components and your charging sources. Most of the cables are 15 feet long, solar and alternator charging cables are 20 feet long, and battery cables are typically 5 or 8 feet long.

POWER KIT VARIANTS:

You can choose between three variants of the EcoFlow 5kWh Power Kit:

• Get Set Kit: Includes - 1x Power Hub, 1x 5 kWh LFP Battery, 1x Cable Pack, 1x 48VDC Air Conditioner Cable (20-foot)
• Prepared Kit: Includes - Everything in the Get Set Kit plus 1x AC / DC Smart Distribution Panel, 1x Battery Mounting Strap
• Independence Kit - Everything in the Get Set & Prepared Kit plus 1x Power Kit Console

KEY FEATURES: ECOFLOW 5kWh POWER KIT (Gen1)

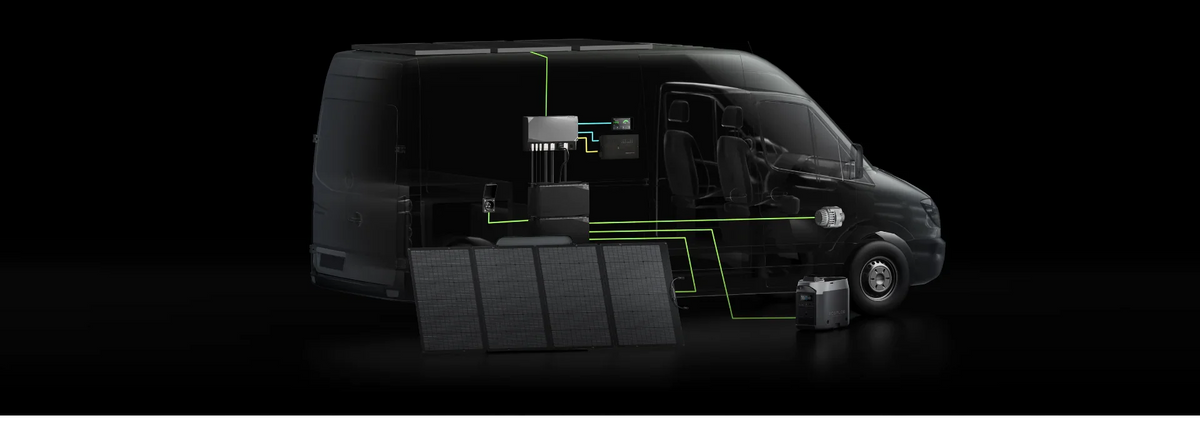

• Supports up to 6000W of charging through a combination of 4 methods: up to 4800W solar, 4800W alternator, 3000W shore power, and 1800W Smart Generator input.
• Plug-and-play for simple assembly.

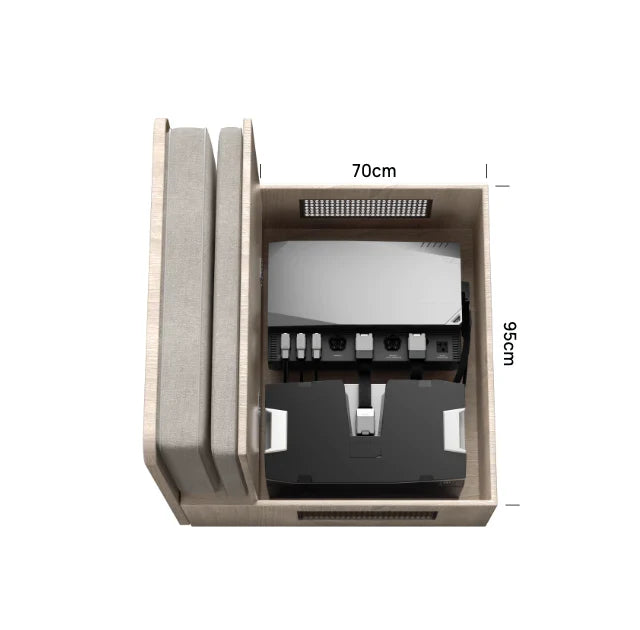

• Compact, integrated design, all-in-one Power Hub combines 5 components.

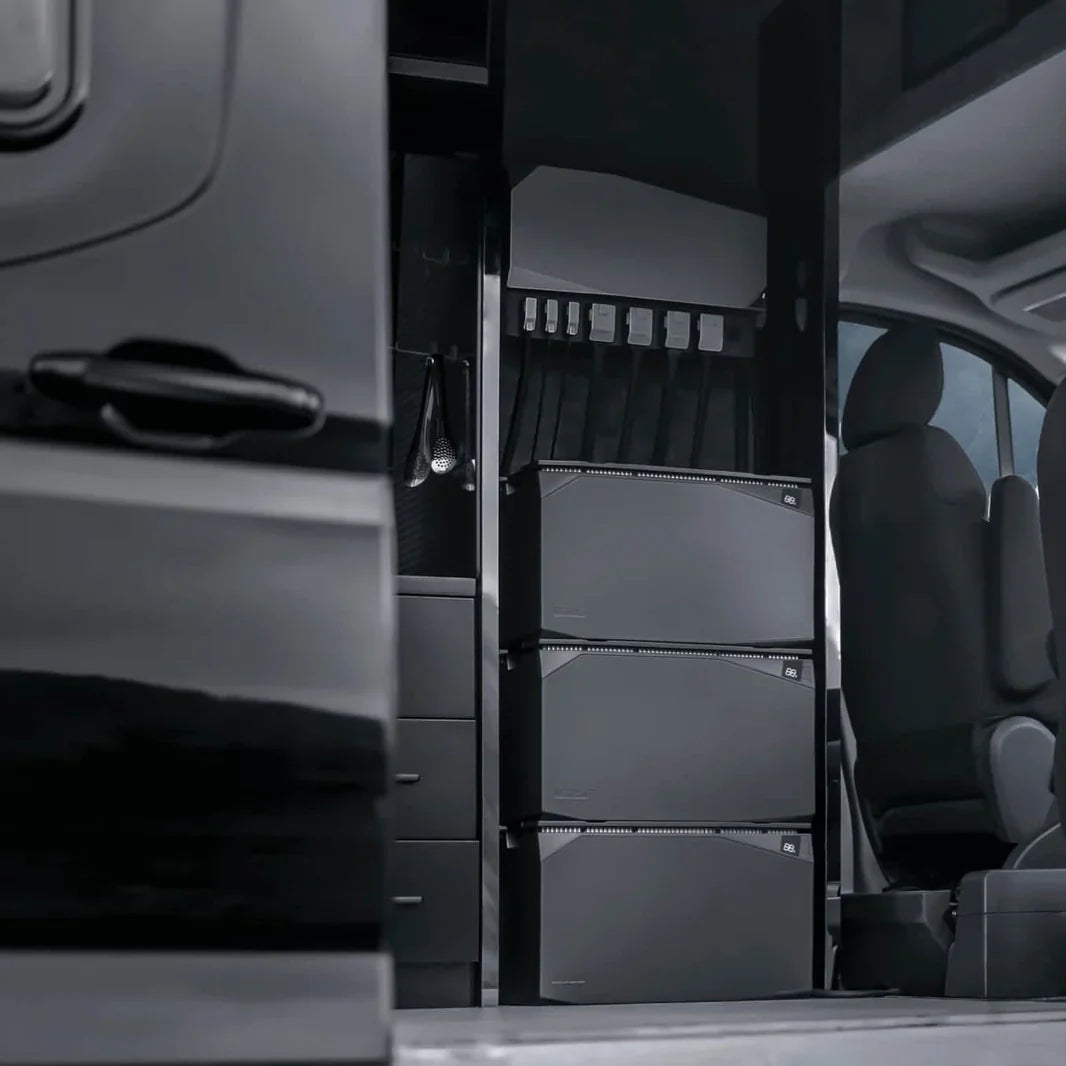

• Save space with stackable batteries.
• 48V system, a safer, smaller power solution.

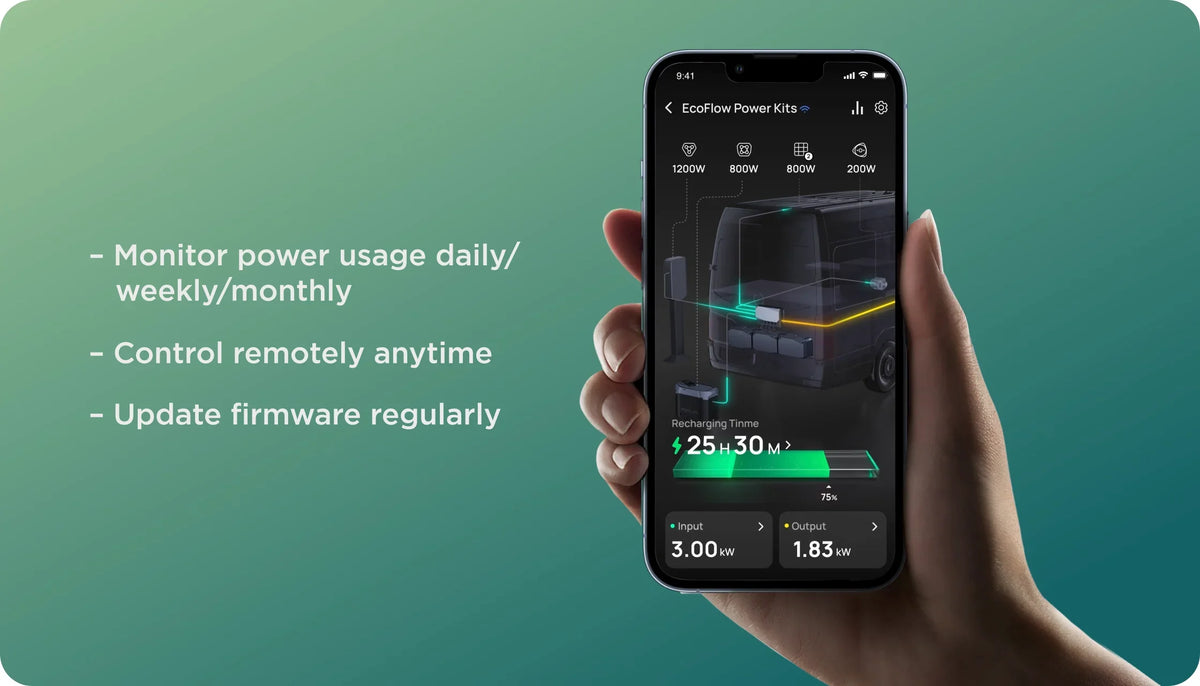

• Real-time and remote smart controls.
• 5-year system warranty, can purchase an upgrade to 10 years.

POWER KIT ADVANTAGES

• Plug-and-Play: Standardized, simplified power system with easy installation process.
• Four Charging Methods, Up to 6000W: Solar, Alternator, Generator, Shore Power.
• Compact & Integrated Design: Space-saving, stackable battery design.
• Smart Controls: Real-time data tracking and control options.

SPECIFICATIONS: ECOFLOW 5kWh POWER KIT

DOCUMENTS: ECOFLOW 5kWh POWER KIT

• EcoFlow LFP Battery User Manual
• EcoFlow Power Hub User Manual
• EcoFlow Power Kit Console User Manual
• EcoFlow AC DC Smart Distribution Panel User Manual

ECOFLOW 5kWh POWER KIT INSTALLATION OVERVIEW
