3M™ Thinsulate™ Van Insulation Kit for Ram ProMaster (Pre-Cut)
RAM ProMaster 136" WB - 3M
$2,000.00
Skip to product information
3M™ Thinsulate™ Van Insulation Kit for Ram ProMaster (Pre-Cut)
$2,000.00
FREE SHIPPING
Ships within 24 hours - Nationwide delivery
NO TAX
Save on sales tax - Applied at checkout
Meet the proven way to insulate and reduce noise in your Promaster build.
Made to order. Please allow 2-3 weeks before shipping during the busy season.
This pre-cut 3M™ Thinsulate™ AU6002 kit is CNC-cut to the main wall, ceiling, and door cavities of 2014+ Ram Promaster High Roof vans, so you can install cleanly without hours of templating. The hydrophobic non-woven blends polyester and ultra-fine polypropylene fibers to deliver excellent acoustic absorption and reliable thermal performance: lightweight, compressible, and conformable for a professional finish behind panels.
Why builders choose this kit
- Drop-in, pre-cut pieces for major cavities save serious build time and mess
- Acoustic control you can feel: AU6002 is engineered for vehicle noise reduction
- Hydrophobic fibers resist moisture, mold, and mildew; no extra vapor barrier needed in typical use
- Meets FMVSS 302 flammability requirements for automotive interiors
What’s included
- Pre-cut AU6002 panels for cargo-area walls, ceiling, and doors

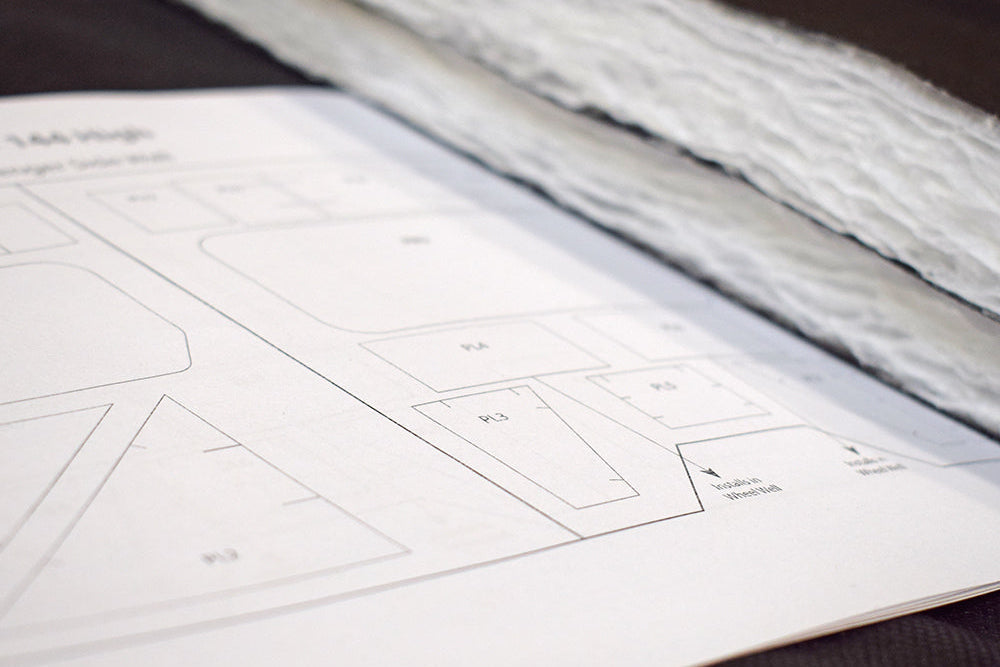

- Placement diagram for piece locations
- Coverage is designed for open cavities
What’s not included
- The floor and cab area
- Pieces to stuff between closed beams/cavities. These are intentionally excluded to focus on the main large open cavities for a clean, repeatable install.
Fitment
- RAM ProMaster High Roof: 136" WB, 159" WB, and 159" EXT (2014+)
- Low Roof ProMaster 136"/159" compatible with trimming (user cuts required).
Video: 3M™ Thinsulate™ Insulation Kit for Ram ProMaster Vans
3M™ Thinsulate™ AU6002 — Key Specs
| Attribute | Spec | Notes |
|---|---|---|
| Material | 3M™ Thinsulate™ Acoustic Insulation AU6002 | Double black scrim; automotive grade |
| Roll Width | 60 in (1524 mm) | Standard AU6002 roll width |
| Thickness | ~44 mm | Nominal, uncompressed |
| Density | ~16.1 kg/m³ | Typical for AU6002 |
| Thermal Resistance | Approx. R-5.45 per inch (RSI 0.96) | As commonly published by van upfitters |
| Acoustic Behavior | High absorption, mid–high frequencies | Engineered for vehicle sound control |
| Fire Resistance | Meets FMVSS 302 | Automotive flammability standard |
| Moisture Behavior | Hydrophobic fibers | Resists moisture, mold, mildew |
| Install Method | Adhere panels inside cavities | Pre-cut per cavity; diagram included |
| Coverage | Walls, ceiling, doors (cargo) | Cab and floor not included |
FAQ (Frequently Asked Questions) click to expand
1.Will this fit my 2014–current ProMaster High Roof?
Yes. The kit is cut for 2014+ RAM ProMaster High Roof vans in 136", 159", and 159" EXT wheelbases. Select your wheelbase in the dropdown.
2.Does it include the cab or the floor?
No. Coverage is for cargo-area walls, ceiling, and doors only. Cab and floor are not included.
3.Can I use it in a Low Roof ProMaster?
Yes, but you will need to trim pieces to fit. The pre-cut layout targets High Roof cavities.
4.Is a vapor barrier required?
3M™ Thinsulate™ fibers are hydrophobic and resist moisture, mold, and mildew in typical van applications. Most builders do not add a separate barrier behind panels. Follow your build philosophy and local codes.
5.How does AU6002 help with road noise?
AU6002 is an automotive acoustic insulator with high absorption, especially in mid-to-high frequencies common to road and wind noise.
6.What about fire safety?
AU6002 meets the FMVSS 302 interior flammability standard commonly used for vehicle components.
